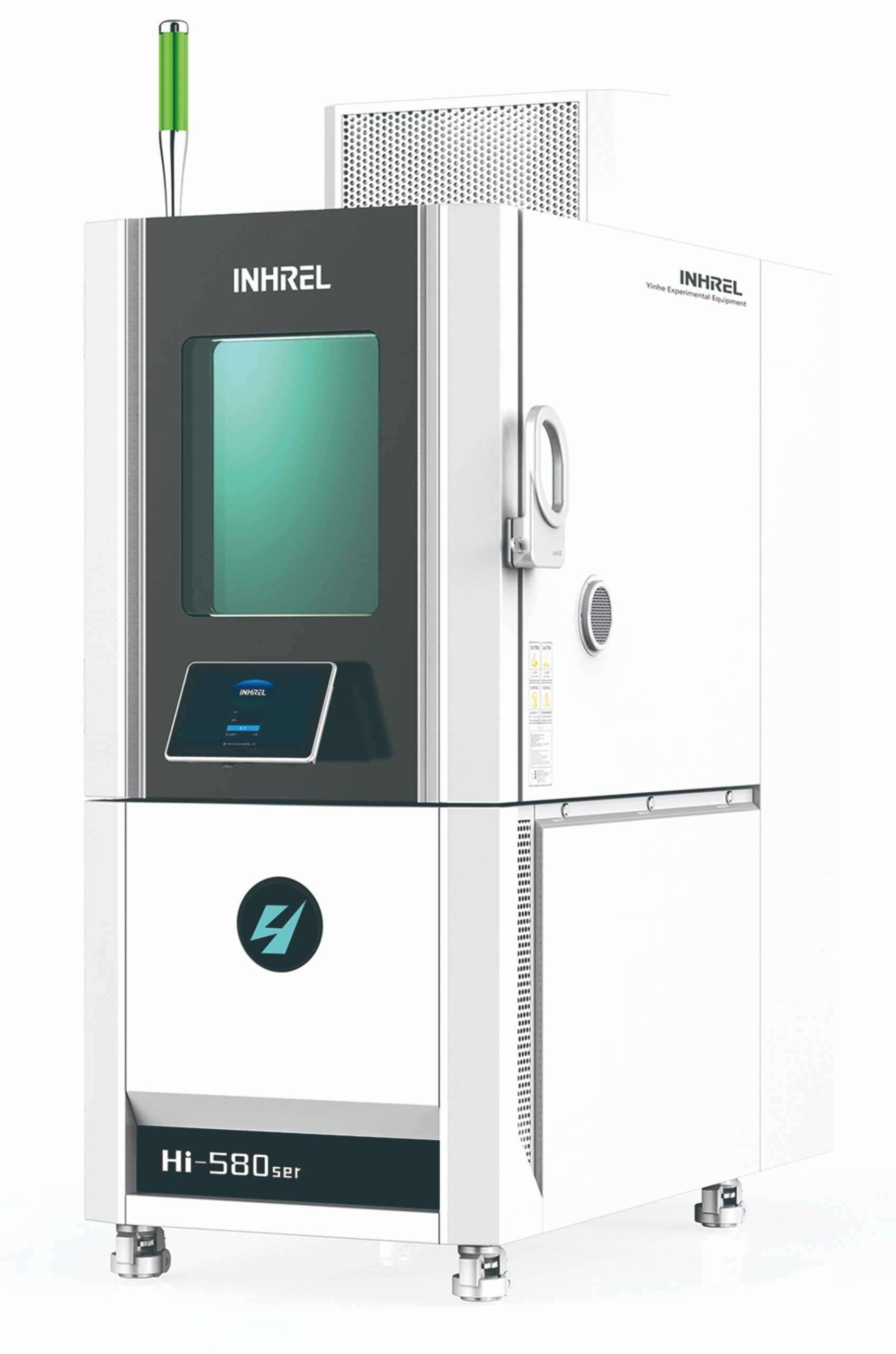

“Hi” series of products:compared with the same cooling rate requirements, the machine efficiency can increase by more than 30%.
Adopt 262K color high performance touch screen.
Adopt 128G data memory, can save real-time test data for a long time.
This series features world-class high-efficiency refrigeration technology. Compared with the same cooling rate requirement, the efficiency of the chiller can be increased by more than 30%. At the same time, it adopts a brand-new appearance style and a new generation of operating system, providing you with a new generation of climatic environment reliability test equipment that is easy to use, efficient, safe, capable of long-term data retention, and convenient for accessing test data as needed.
Prooduct Name | High-Low Temperature/Humid Heat Test Chamber | ||||||||
Prooduct Model | HC3-650/2F | HC4-200/2F | HC4-650/3F | HC4/1500/2F | HC7-200/6 | HC7-330/8 | HC7-1000/11 | HC7-1500/19 | |
Working chamber volume | 646L | 208L | 646L | 1595L | 208L | 326L | 1045L | 1512L | |
Working chamber dimensions (mm) |
W | 850 | 580 | 850 | 1100 | 580 | 580 | 1100 | 1100 |
H | 950 | 750 | 950 | 1000 | 750 | 750 | 1000 | 1000 | |
D | 800 | 480 | 800 | 1450 | 480 | 750 | 950 | 1375 | |
External dimensions (mm) |
W | 1050 | 780 | 1050 | 1300 | 780 | 780 | 1300 | 1300 |
H | 2030 | 1830 | 2030 | 2080 | 1830 | 1830 | 2080 | 2080 | |
D | 1840 | 1520 | 1840 | 2490 | 1520 | 1790 | 2065 | 3190 | |
Heating/Cooling Rate | 2.1℃/min | 2.5℃/min | 2.7℃/min | 2℃/min | 5.9℃/min | 7.6℃/min | 11℃/min | 19℃/min | |
Temperature range | -30~+180℃ | -40~+180℃ | -70~+180℃ | ||||||
Temperature fluctuation | ±0.1~±0.5℃ | ||||||||
Temperature uniformity | 1~2℃ | ||||||||
Temperature deviation | ±0.5~±2℃ | ||||||||
Humidity range | 10~98%RH | ||||||||
Humidity fluctuation | ±3%RH | ||||||||
Humidity uniformity | 5(10℃~85℃,﹥75%RH); 7(10℃~85℃,≤75%RH) | ||||||||
Humidity deviation | +2~-3 (﹥75%RH); ±5(≤75%RH) |
