“S” series of products:compared with the same cooling rate requirements, the machine efficiency can increase by more than 30%.
Adopt 262K color high performance touch screen.
Adopt 128G data memory, can save real-time test data for a long time.
This series features world-class high-efficiency refrigeration technology. Compared with the same cooling rate requirement, the efficiency of the chiller can be increased by more than 30%. At the same time, it adopts a brand-new appearance style and a new generation of operating system, providing you with a new generation of climatic environment reliability test equipment that is easy to use, efficient, safe, capable of long-term data retention, and convenient for accessing test data as needed.

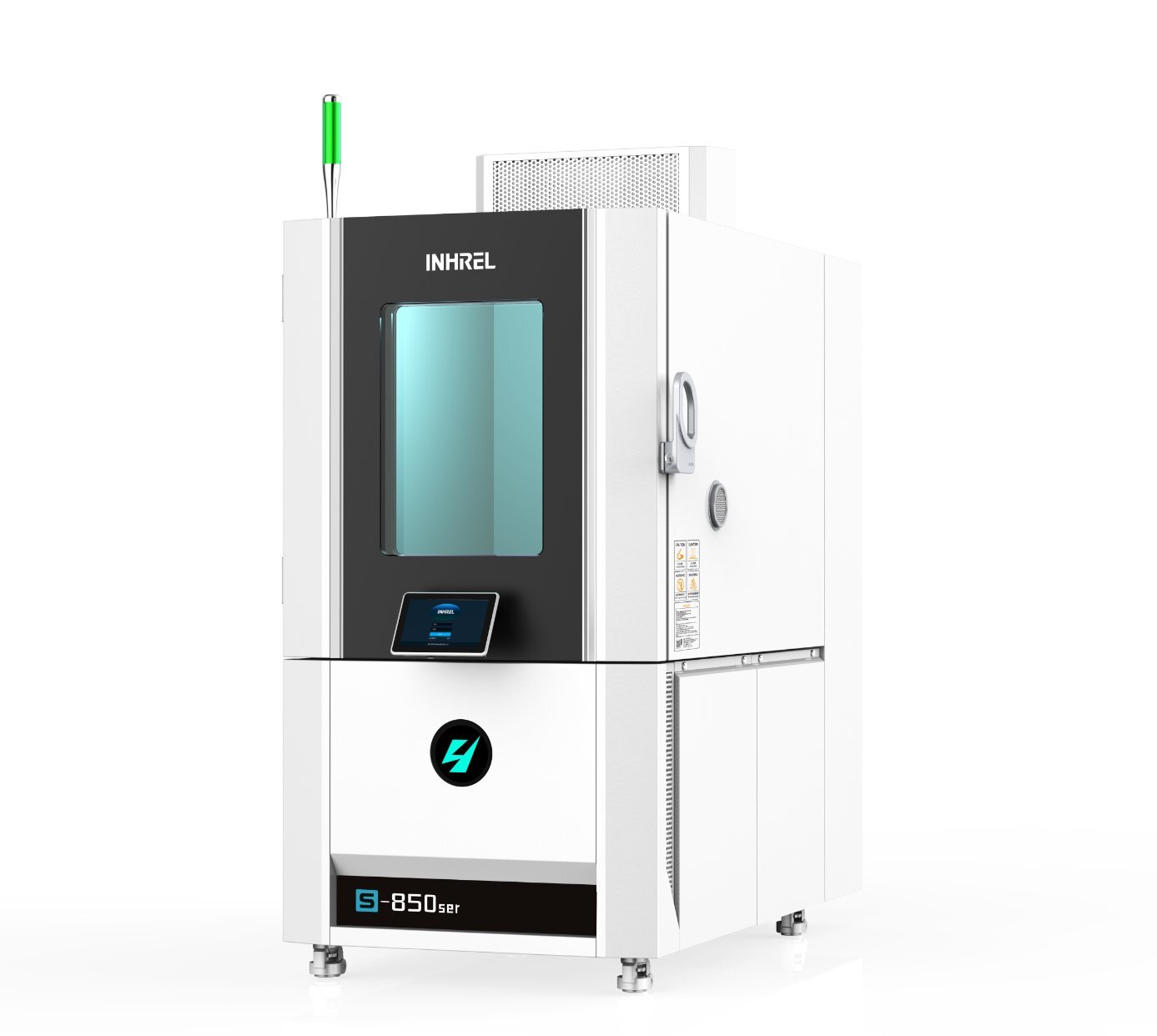

Prooduct Name | High-Low Temperature/Humid Heat Test Chamber | ||||||||
Prooduct Model | SC3-650/2F | SC3-1000/2F | SC4-200/5 | SC4-1000/3F | SC7-330/4 | SC7-650/6F | SC7-1000/32 | SC7-1500/12 | |
Working chamber volume | 646L | 1127L | 208L | 1127L | 326L | 646L | 1045L | 1512L | |
Working chamber dimensions (mm) |
W | 850 | 1100 | 580 | 1100 | 580 | 850 | 1100 | 1100 |
H | 950 | 1000 | 750 | 1000 | 750 | 950 | 1000 | 1000 | |
D | 800 | 1025 | 480 | 1025 | 750 | 800 | 950 | 1375 | |
External dimensions (mm) |
W | 1050 | 1300 | 780 | 1300 | 780 | 1050 | 1300 | 1300 |
H | 2030 | 2080 | 1830 | 2080 | 1830 | 2030 | 2080 | 2080 | |
D | 1840 | 2065 | 1520 | 2065 | 1790 | 1840 | 2765 | 2590 | |
Heating/Cooling Rate | 2.1℃/min | 1.8℃/min | 5℃/min | 3℃/min | 4.1℃/min | 5.5℃/min | 31.5℃/min | 12℃/min | |
Temperature range | -30~+180℃ | -40~+180℃ | -70~+180℃ | ||||||
Temperature fluctuation | ±0.1~±0.5℃ | ||||||||
Temperature uniformity | 1~2℃ | ||||||||
Temperature deviation | ±0.5~±2℃ | ||||||||
Humidity range | 10~98%RH | ||||||||
Humidity fluctuation | ±3%RH | ||||||||
Humidity uniformity | 5(10℃~85℃,﹥75%RH);7(10℃~85℃,≤75%RH) | ||||||||
Humidity deviation | +2~-3 (﹥75%RH);±5(≤75%RH) |
