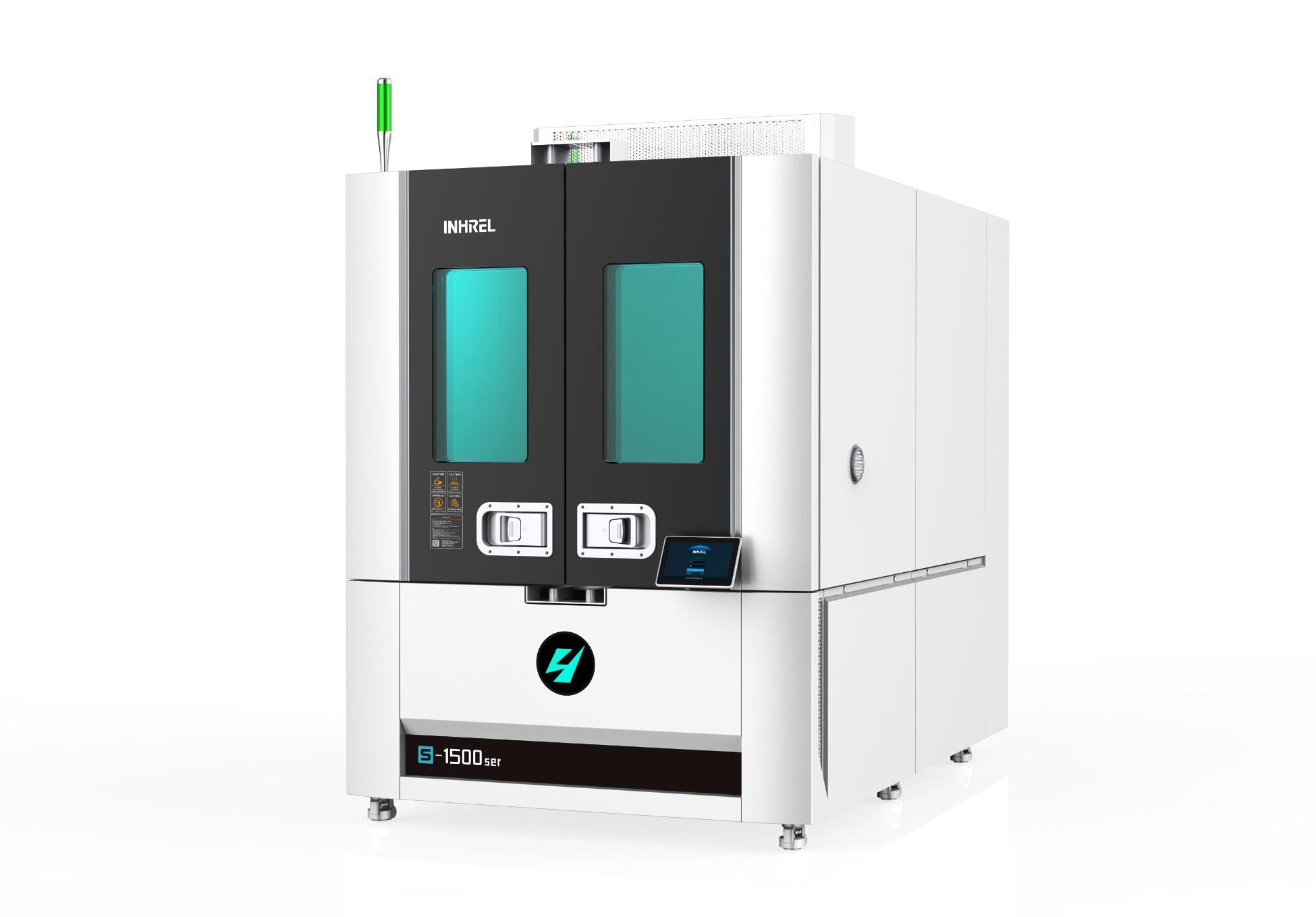

Mold Test Chamber

YINHE

Description

This test chamber can be used to provide favorable growth conditions required for mold tests, including both temperature variation (25°C～30°C) and non-temperature variation (28°C～30°C). The mold test can be used to evaluate the degree of mildew growth on products (complete machines), components, materials, etc., as well as the impact of mildew growth on their performance or usability.

Prooduct Name	Mold Test Chamber
Prooduct Model	SM1	SM2	SM3
Working chamber volume	1036L	1540L	2640L
Working chamber dimensions (D×W×H)	1020×950×1070mm	1000×1400×1100mm	1100×1500×1600mm
External dimensions (D×W×H)	2015×1150×2060mm(Height without motor: 235)	2090×1604×2072mm(Height without motor: 180)	2400×1950×2400mm(Height without motor: 235)
Temperature range	10℃～+100℃
Temperature fluctuation	≤±0.5℃
Temperature uniformity	≤2℃
Temperature deviation	±2℃
Humidity range	40％～98％RH
Humidity deviation	+2～-3％（＞75％RH）；±5％（≤75％RH）
Ventilation Function	It has a fully automatic timed ventilation function.

Important Notes:
– The user shall provide the bacterial strains and related materials by themselves.
– Mold tests may be harmful to human health. Please take necessary protective measures during the test.
